Z-drive

Z-drive documents

AZ flyer download

AZ CAD download

Direct enquiry

Construction of the Uhing® Z-Drive

Uhing® Z-drive:

  • Easy to install
  • Precise guide
  • High travelling speeds and acceleration rates
  • Wide range of types and accesssories

The Uhing® Z-drives are based on rigid aluminium sections that are resistant to torsion.

Several T-slots integrated in the carrier sections allow variable application and facilitate fitting. Slide blocks can be easily inserted. Power is transmitted from the timing belt to the load carriage via the belt joint mounted on the load carriage.

Uhing Z-drives are made of high-quality material, such as corrosion-proof, hardened guide rails and robust, dimensionally stable timing belts. They are precise, allow accurate positioning, provide high acceleration rates and speeds and have a long life.

Numerous accessories and the Uhing® SMS 2010 positioning and sequence control system complete the range of products.


Z-drive media centre


Z-drive pictures

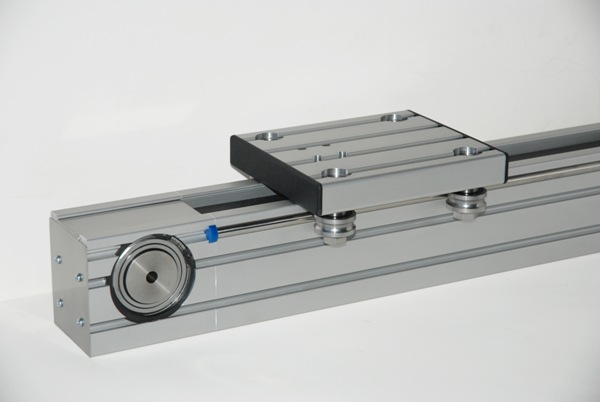

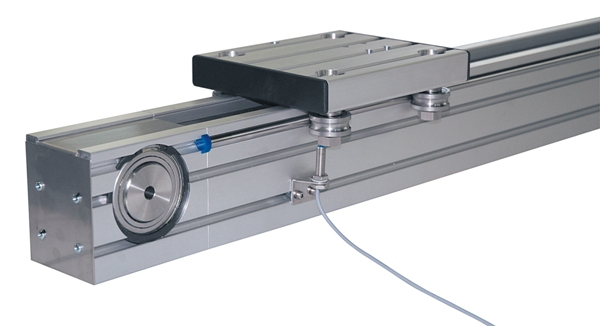

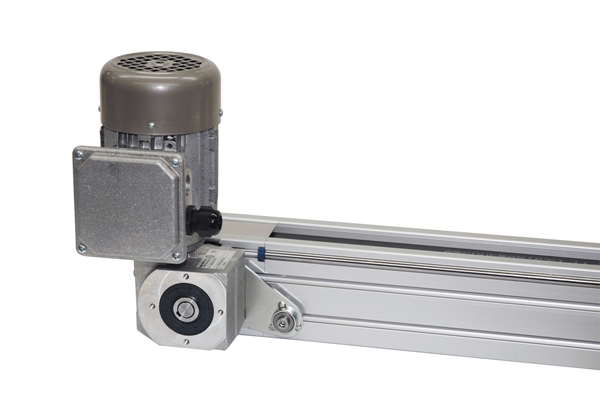

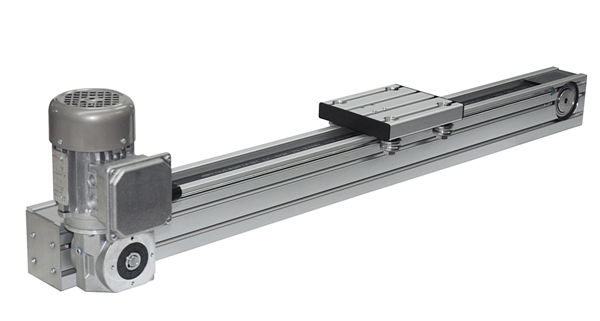

uhing-zahnriemenantrieb-AZ1040-Sensor.jpg uhing-zahnriemenantrieb-AZ1040oben.jpg uhing-zahnriemenantrieb-AZ2001.jpg uhing-zahnriemenantrieb-AZ-Motor-9173.jpg uhing-zahnriemenantrieb-AZ-Motor_-210.jpg uhing-zahnriemenantrieb.jpg uhing-zahnriemenantrieb-AZ1040.jpg

Press releases

Even better than the AZ 2004: the motorised AZ 1040 timing belt drive replaces the Uhing bestseller

When you are looking for a robust and powerful timing belt drive that also is a paradigm for successful industrial design, you cannot help checking out the Joachim Uhing KG portfolio. You will find an innovation launched by the internationally renowned engineering company: the motorised AZ 1040... [read more]

More press releases
