Easylock®

Easylock documents

Easylock flyer download

Easylock CAD download

Direct enquiry

Related product

U-Clip - shaft collar for smooth shafts / tubes

uhing-u-clip-UC B26.jpg

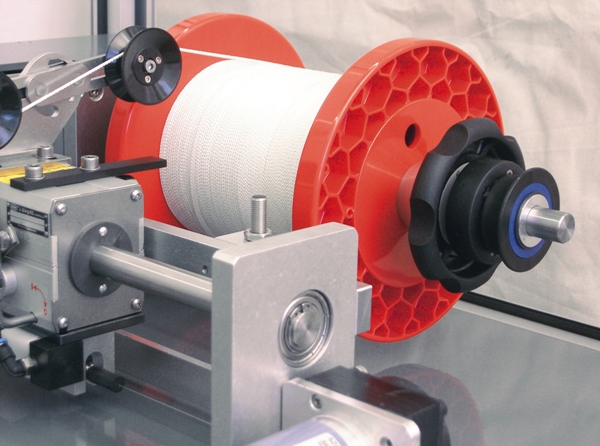

Uhing easylock®  - fast-action clamping system for rolls, spools and static applications

Fast, safe, reliable:

  • shortest possible change-over times

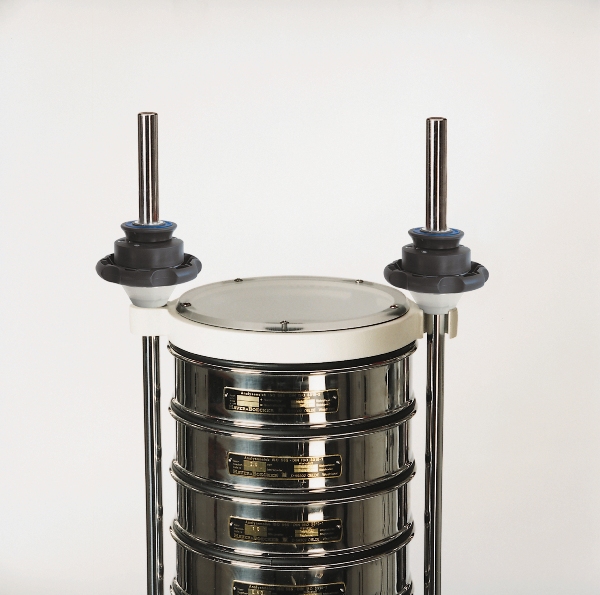

  • also suitable for static applications
  • modular construction ensures simple adaptation to the task at hand
  • no tools required
  • single-handed operation
  • high clamping forces on a plain shaft
  • also suitable for use with driven shafts
  • simple transmission of braking moments to the roll or spool: safe emergency stops
  • compact, symmetrical design
  • maintenance-free
  • resistant against vibration

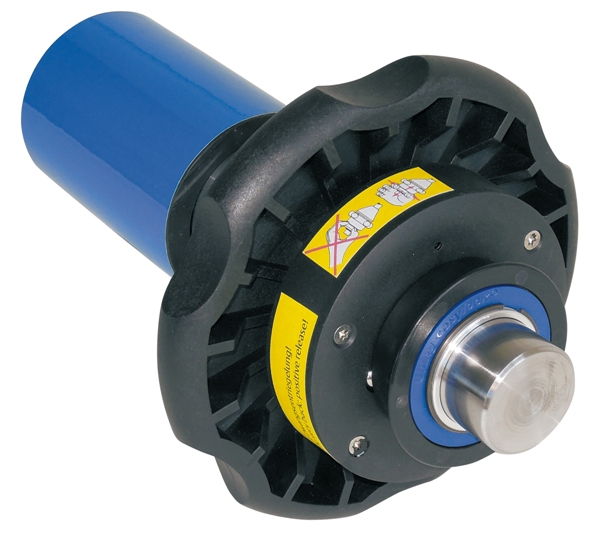

Easylock® with positive release

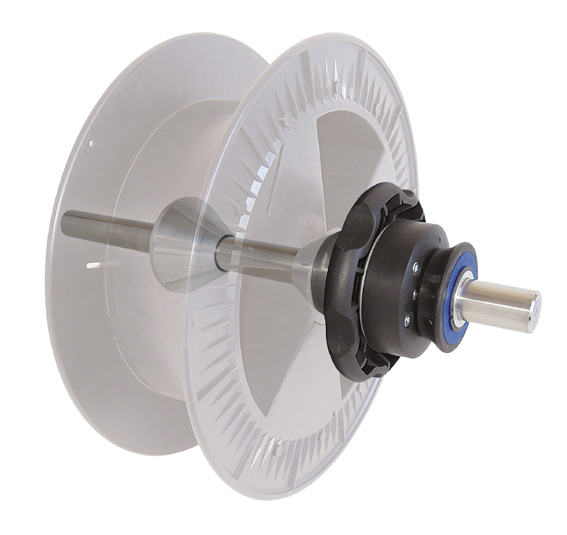

Removal from the shaft can be difficult when a residual force pushes against the clamping module after the clamping wheel was fully turned back. Such residual forces occur when a heavy coil still rests on the cone after unclamping, or when coils have expanded during winding.

For such a case, we recommend Uhing-easylock ® with positive release.

The positive release becomes effective when the clamping wheel is turned to its rear limit position. The positive release feature does not affect dimensions, weight and other operating steps, i.e. these remain unchanged.


Easylock media centre


Easylock product video

Easylock pictures

uhing-easylock-ELIII35-0336.jpg uhing-easylock-ELIII-mod-08.jpg uhing-easylock-EL10-40-4270.jpg Uhing-easylock-groessen.jpg uhing-easylock-EL10-40.jpg uhing-easylock-EL-zwangsentr-spulesoft.jpg Spule-EL-soft.jpg uhing-easylock-einsatz.jpg uhing-easylock-EL-8364ret.jpg uhing-easylock-EL-einsatz.jpg

Press releases

Fast-action clamping systems for plain shafts – that's how you do it
Changing spools is made easy with fast-action clamping systems for plain shafts. But how do you do this? Pictures tell more than words. For this reason, Uhing published two short on-line videos showing the Easylock fast action clamping system, and its variant, the U-Clip clamping element....[read more]

Uhing at Wire 2012 in Düsseldorf

Tensioning and clamping systems – enhanced product range.

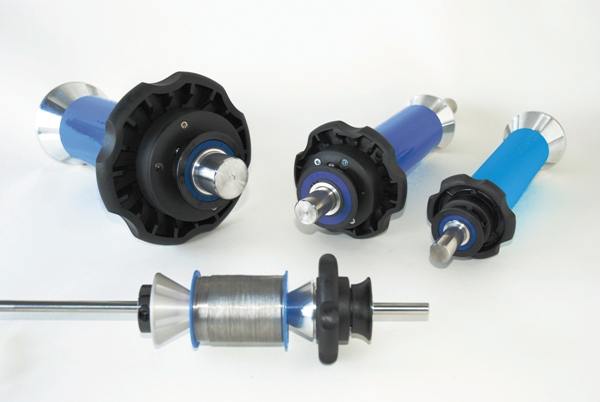

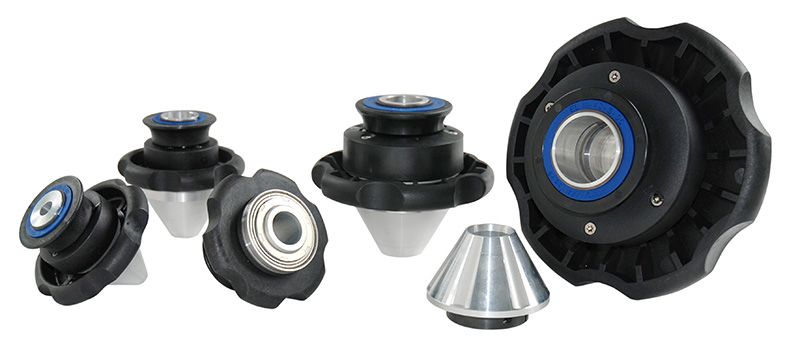

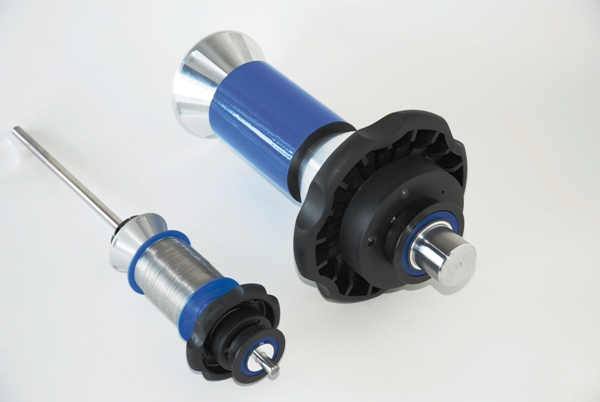

Uhing showcases sizes ELIII 10 and 40 of the Easylock® fast-action clamping system that allows high torques to be transferred to coils and foil rolls on plain shafts. The customer can now choose from lighter and more ergonomic clamping modules in ten different sizes in the 10 to 40 mm diameter range....[read more]

Zum Pressearchiv
