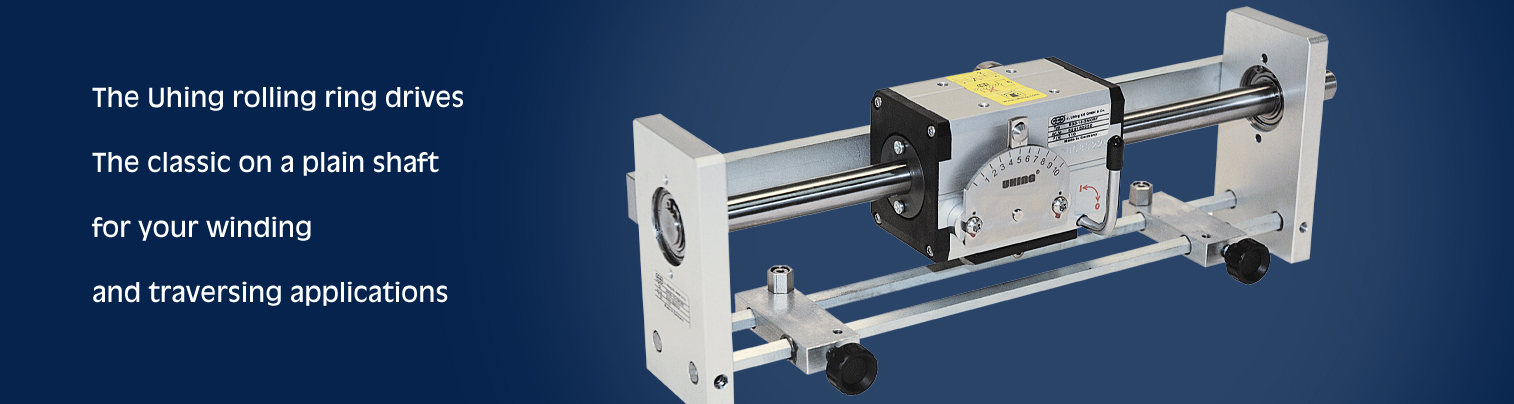

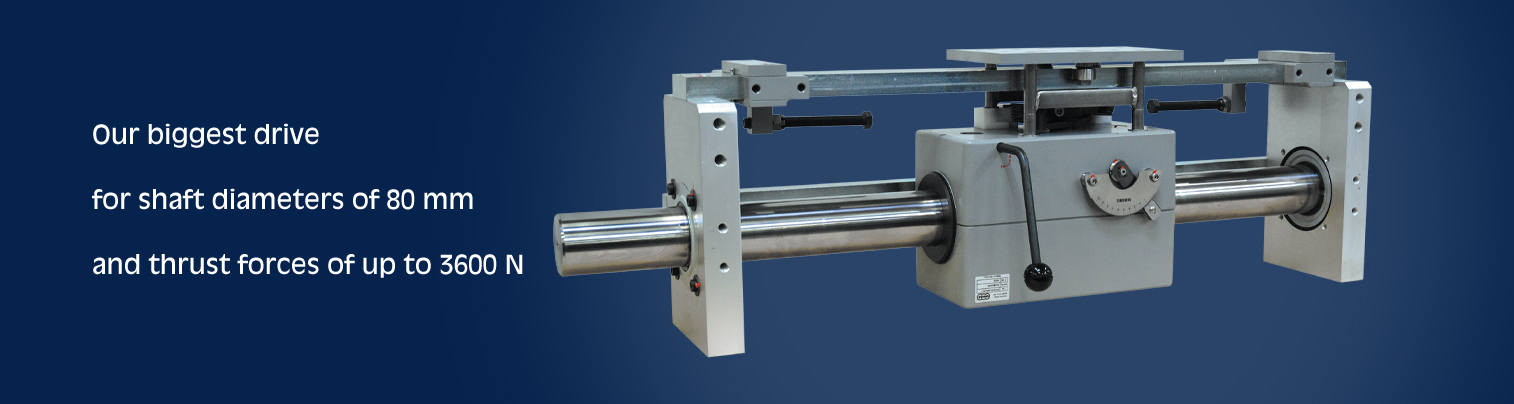

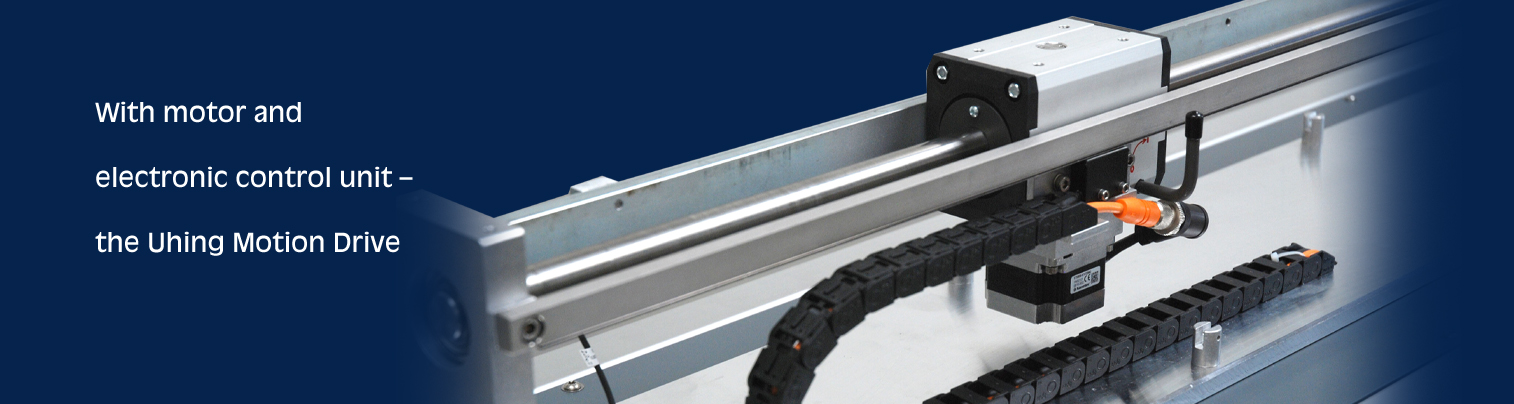

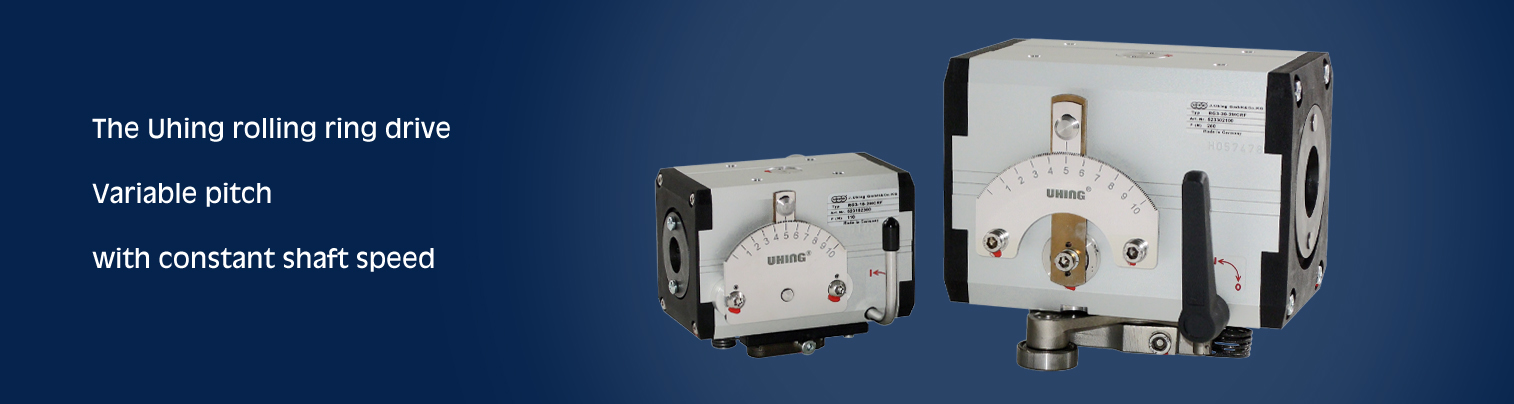

The Uhing® rolling ring drive principle

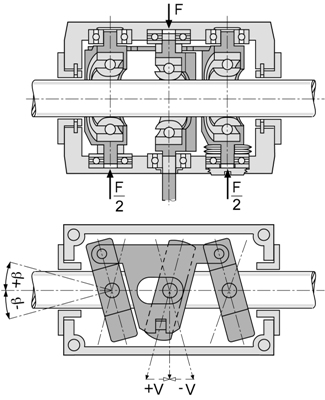

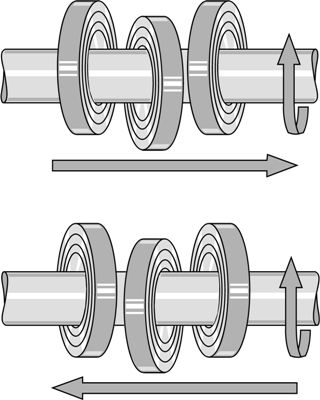

Uhing® Rolling ring drives are friction drives which convert the constant rotary movement of a plain shaft into a traversing movement. They operate like nuts on a screw rod but have a pitch - either right-handed or left-handed - that can be precisely adjusted and can equal zero. This effect is achieved by using pivoted Uhing® rolling rings that are mounted on roller bearings and have a specially shaped running surface which is pressed against the rotating shaft. A roller lever capable of making contact with cams arranged along the stroke path makes it possible to implement even complicated patters of motion.

The main advantages of the Uhing® rolling ring principle are:

  • highest possible efficiency due to the fact that the gear and the payload are completely supported by roller bearings
  • automatic traversing movement
  • variable traversing speeds ranging from 0 m/s to a maximum
    of 4.2 m/s; can also be separately set for the two directions with constant rotation of the shaft
  • variable traversing width and traversing position
  • high dynamics at the points of reversal
  • can be released from the shaft
  • low operating costs
  • low maintenance requirements




Application examples for Uhing® rolling ring drives

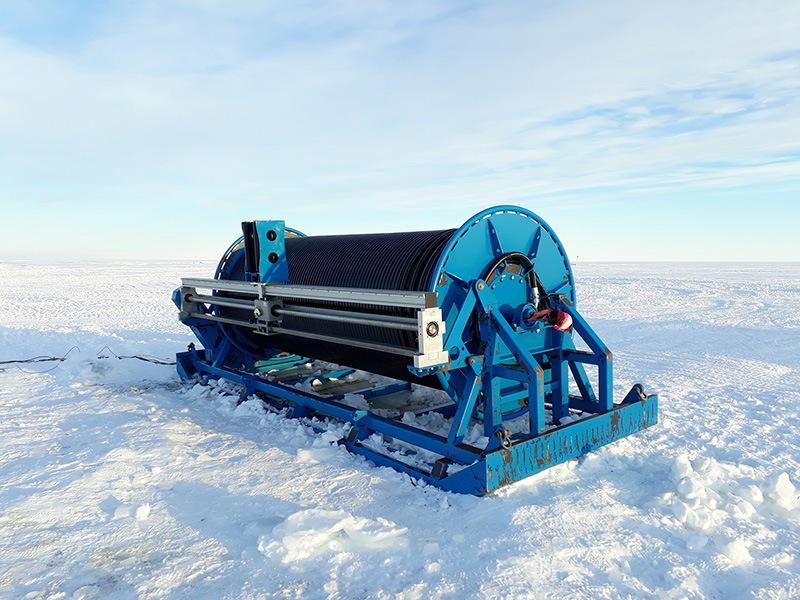

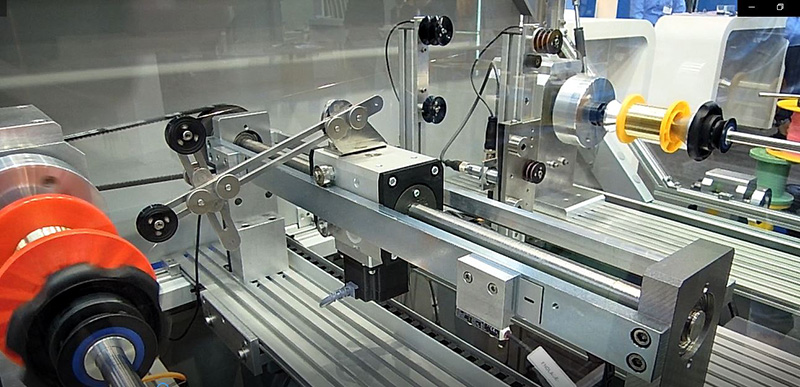

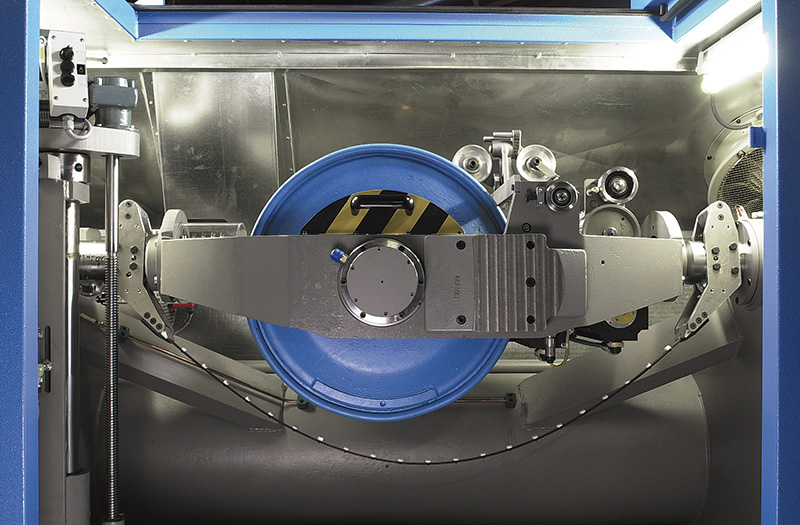

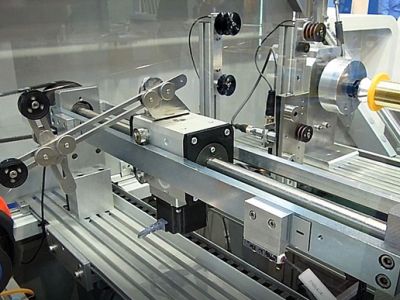

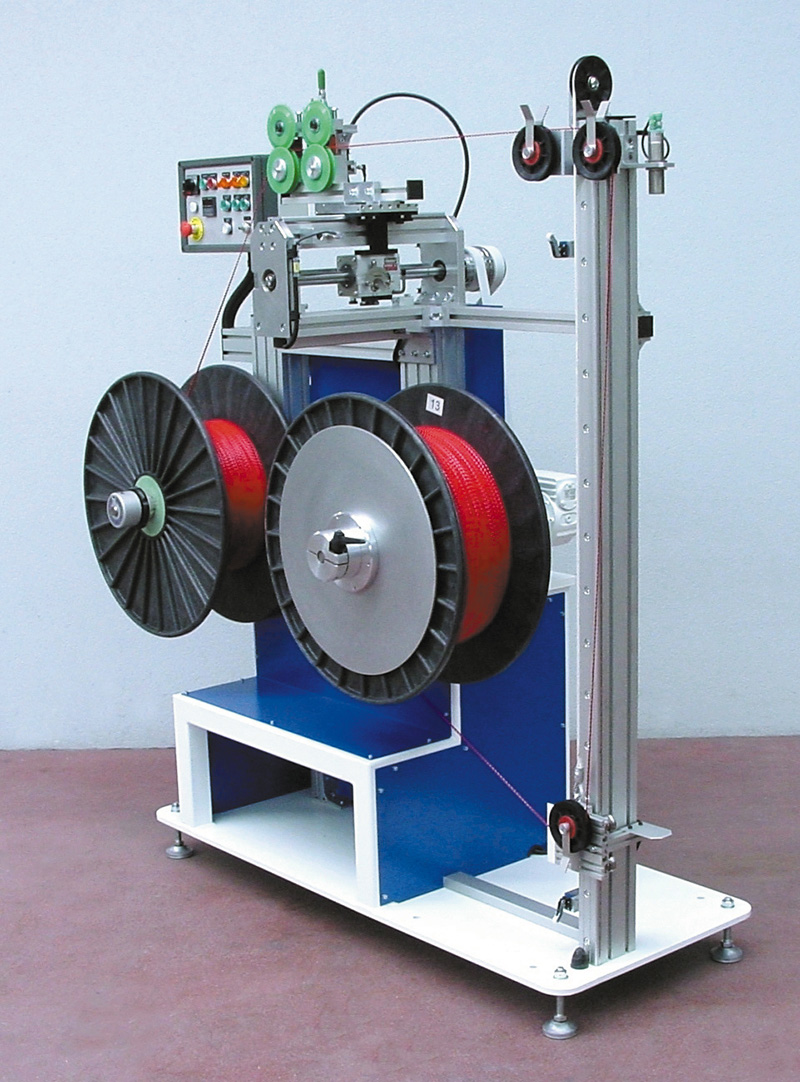

In the wire and cable industries for winding and unwinding, traversing, and positioning

uhing-rg-einsatzbereiche-2.jpg 2-fachwickler-unisto1.jpg uhing-rg-einsatzgebiete-1.jpg uhing-rg-Tropfrohrbergung-®Schöpstal.jpg

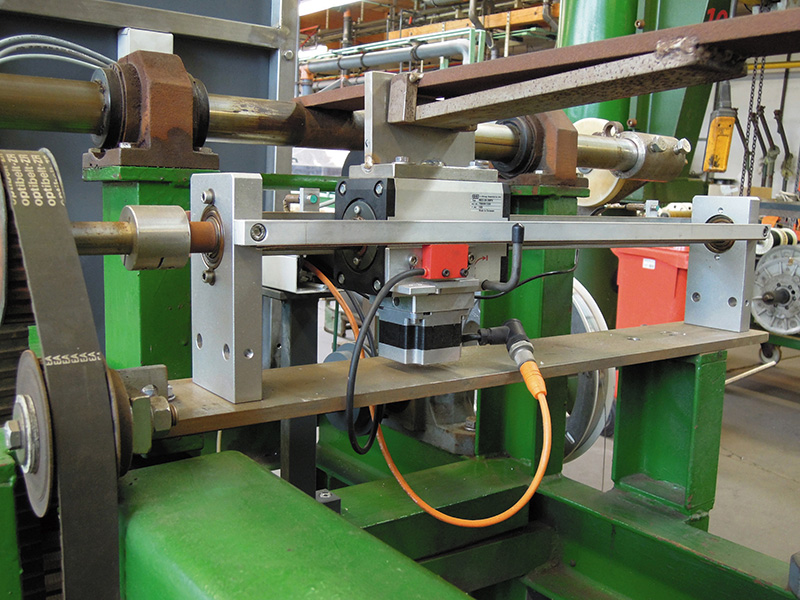

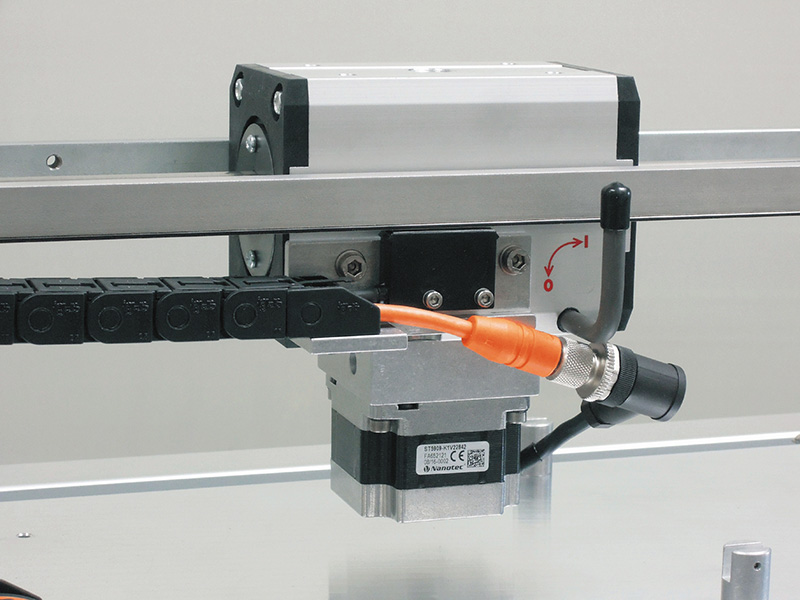

In automation for moving, measuring, testing, clocking, concatenating, positioning

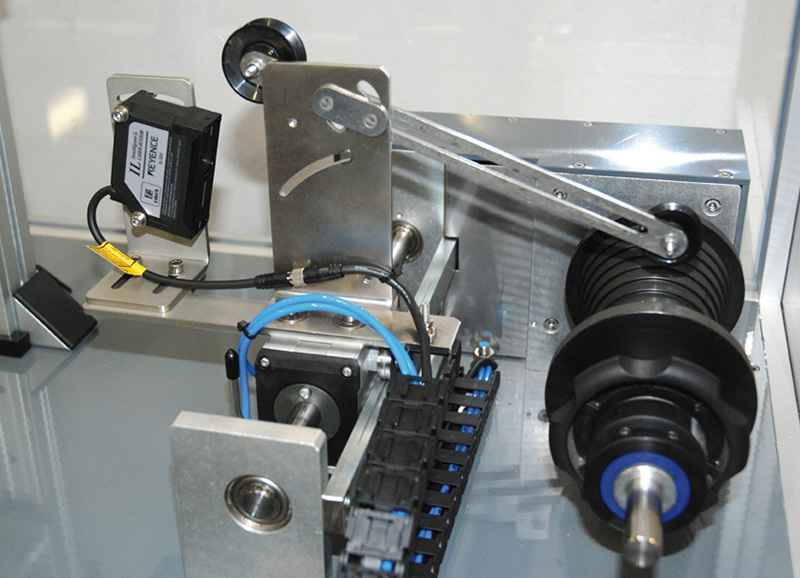

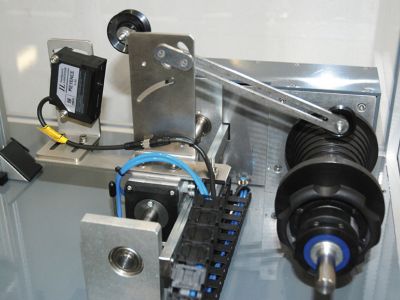

RG-Drive-7351RGB-kl.jpg uhing-rg-Tropfrohr.jpg UMD-Einsatz-jb8157kl.jpg UMS-DSC-4077RGB-kl.jpg UMW-wire2018-9395.JPG

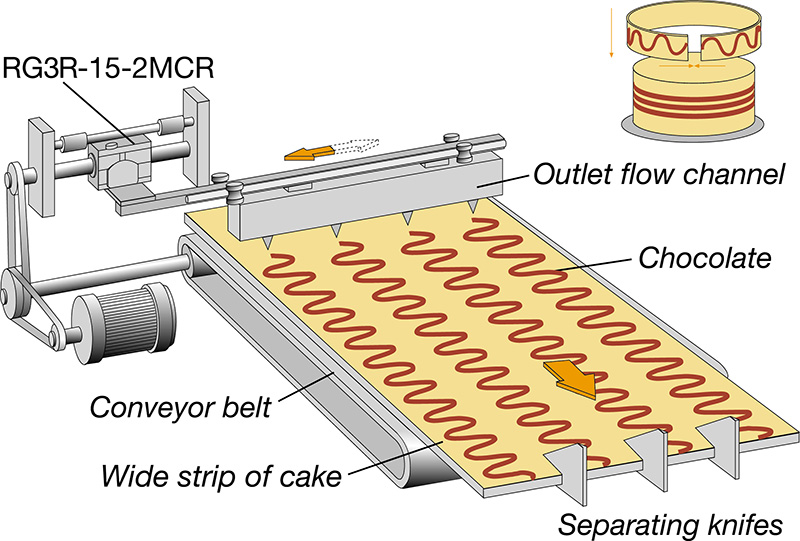

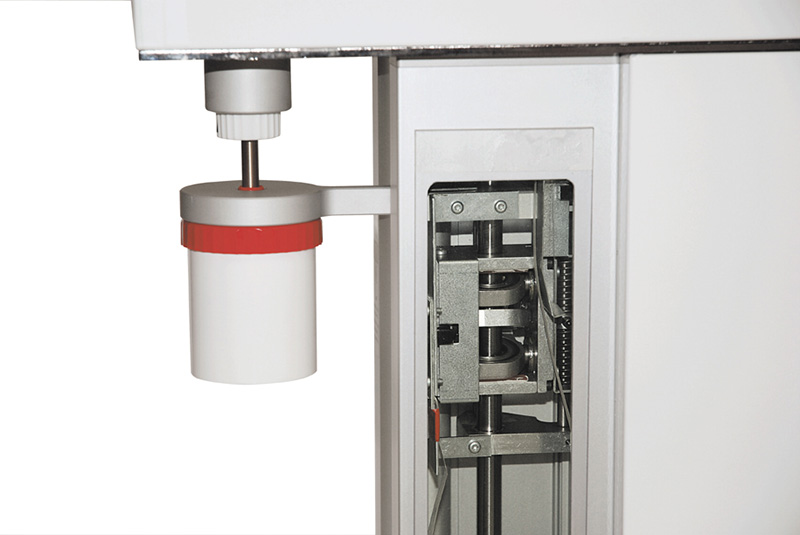

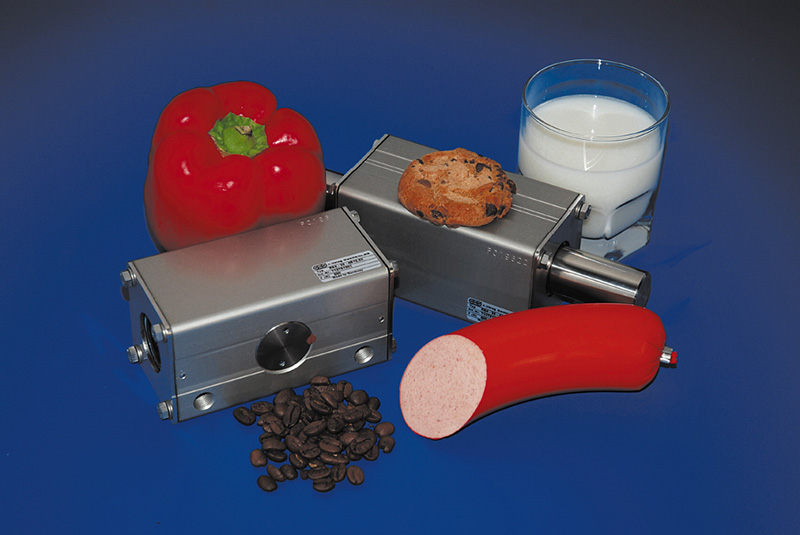

In the food/packaging industries for cutting, separating, distributing, feeding, cleaning

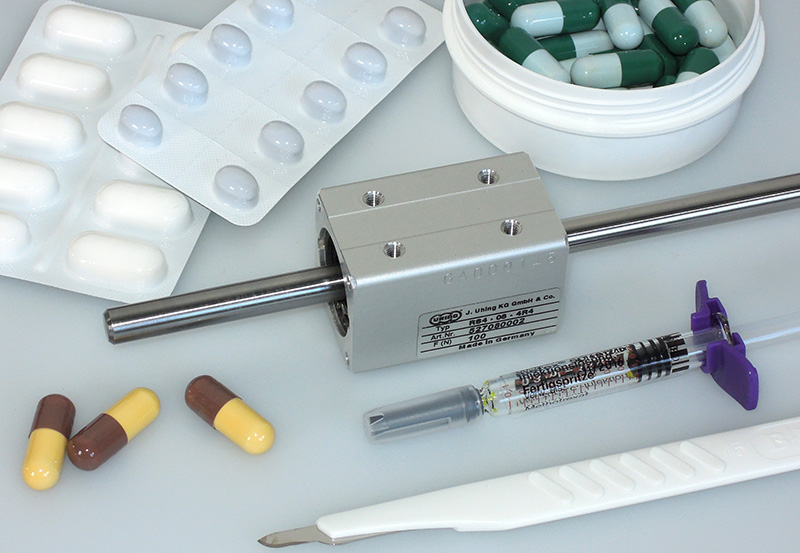

9472-RS-Medizintech-6489kl.JPG RS-Vemag-DSC-2518.jpg Schoko-Band-eng-2022.jpg unguator-9260RGB.jpg

Rolling ring drive media centre


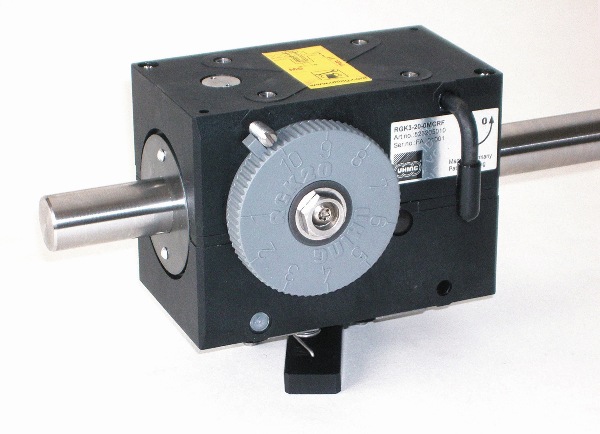

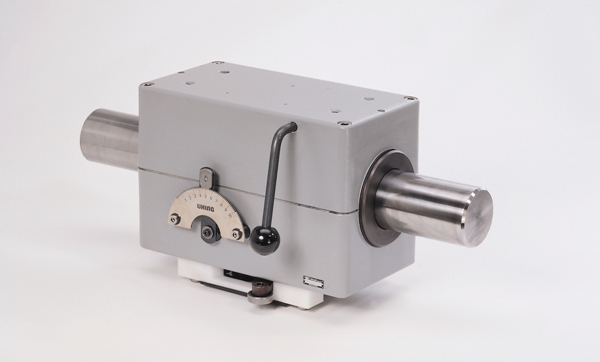

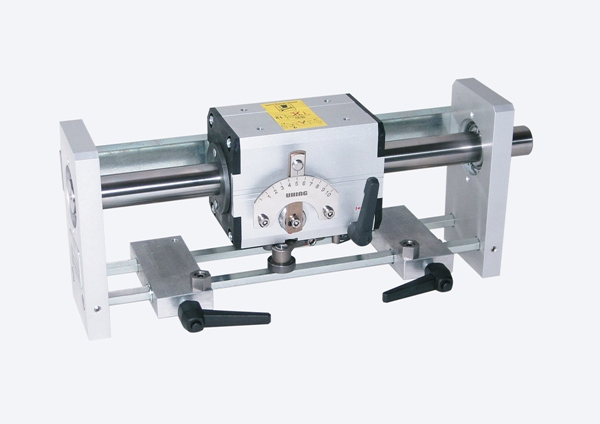

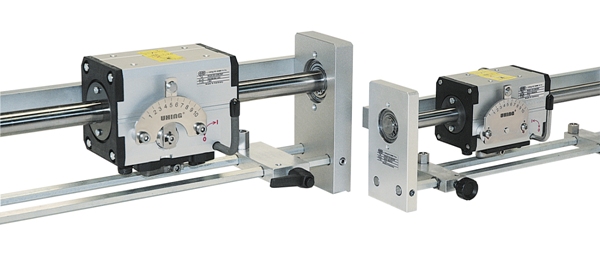

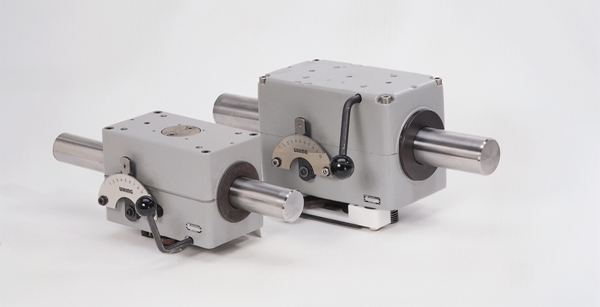

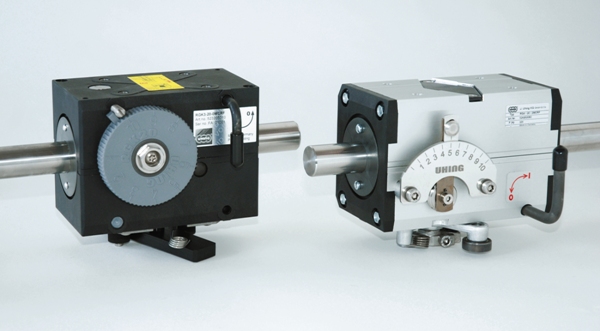

Rollring ring drive pictures

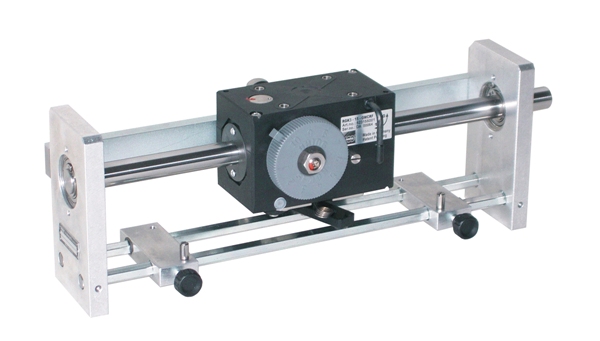

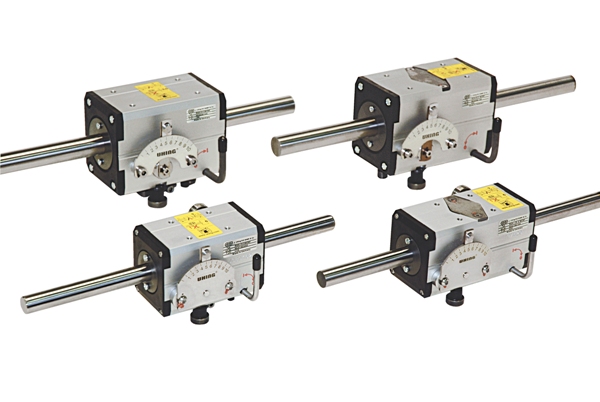

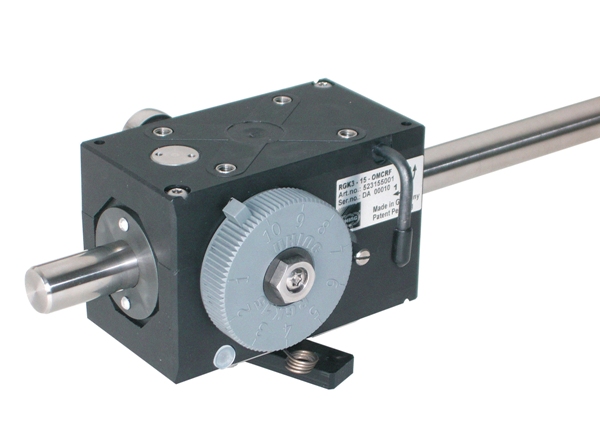

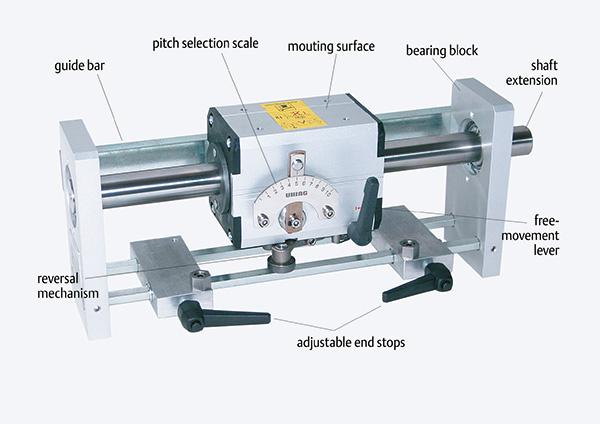

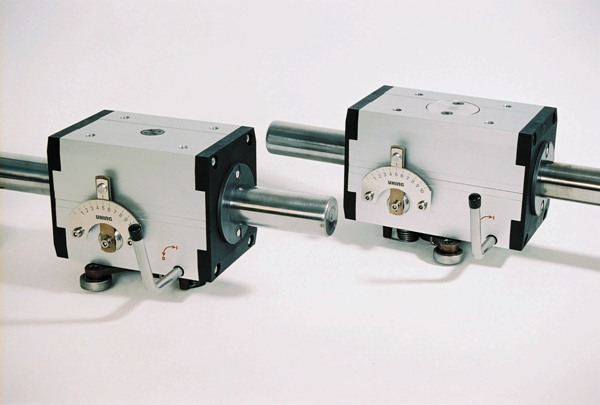

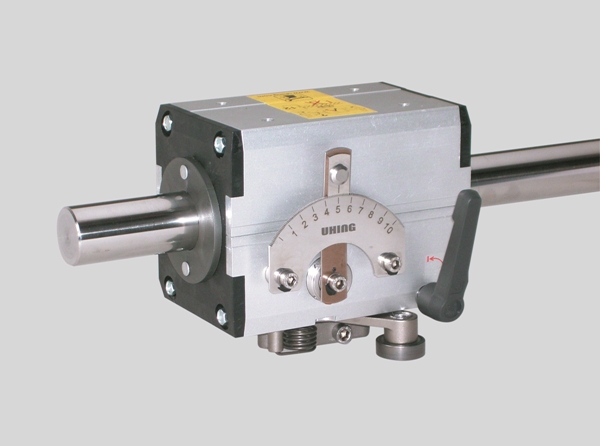

uhing-rollringgetriebe-RGK20.jpg uhing-rollringgetriebe-ARGK15.jpg uhing-rollringgetriebe-RGK15.jpg uhing-rollringgetriebe-RG20-RGK20.jpg uhing-rollringgetriebe--ARG.jpg uhing-rollringgetriebe-ARG15-20.jpg uhing-rollringgetriebe-prinzip.jpg uhing-rollringgetriebe-prinzip-.jpg uhing-rollringgetriebe-RG3-4-15-20.jpg uhing-rollringgetriebe-RG30-li.jpg uhing-rollringgetriebe-RG30-re.jpg uhing-rollringgetriebe-RG40.jpg uhing-rollringgetriebe-RG50-60.jpg uhing-rollringgetriebe-RG80.jpg RG12-unguator.jpg ARG-re-6412-engl.jpg

Rolling ring drive product video

Press releases

A real alternative: Engineering with the rolling ring drive...[read more]

Little brother in great shape - 20 years KINEMAX KI-6 ...[read more]

5 Years Uhing Motion Drive® – Enticing Solution for Many Applications ...[read more]

Tried and tested technology – hardly known - reinvented...[read more]

Digital Transformation - Uhing Rolling Ring Drive is ready for Industry 4.0 ....[read more]

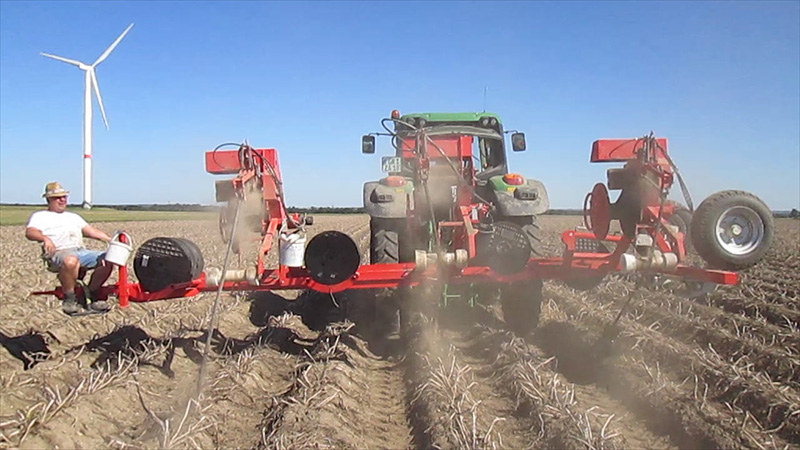

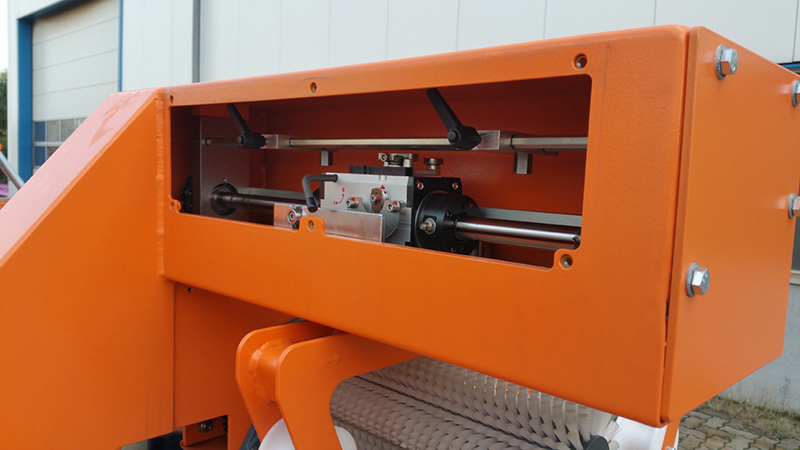

Uhing Rolling Ring Drive: Application for Drip Irrigation Systems ....[read more]
